SuperStrut

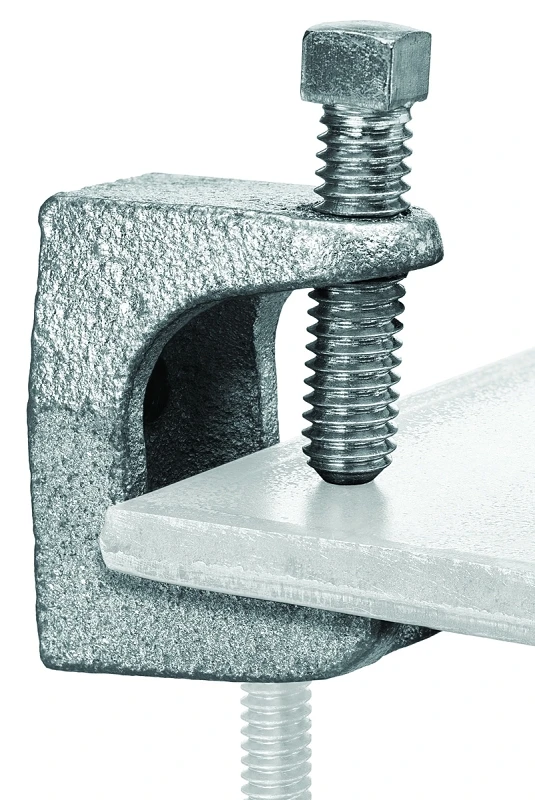

Beam Clamp, Malleable Iron, 3/8-In.
SKU: 6995153Model: Z502-10UPC: 075114014045
$8.55
Special Order Available
Description
3/8", malleable iron beam clamp, -16 threaded openings, fits flanges up to 1" thick, supports threaded rod, threaded brindle rings & electrical boxes, malleable iron with electroplated bright zinc plating, set screw rating 750, static load limit 750 lb, based on a safety factor of 3, load rating based on bottom hole of beam clamp, torque inlb 120.
- 3/8"-16 threaded openings
- Fits flanges up to 1" thick
- Material: Malleable Iron
- Finish: Bright zinc electroplated
- Static Load Limit: 750 Lbs. Based on a Safety Factor of 3. Load Rating Based on Bottom Hole of Beam Clamp
- Torque in Inch-Lbs: 120
- Set Screw Load Rating: 750
Specifications
| SKU | 6995153 |
|---|---|
| UPC | 075114014045 |
| Weight | 0.938 |
| Package Width | 3.88 |
| Package Length | 8 |
| Package Height | 5.88 |
| Model Number | Z502-10 |
| Brand | SuperStrut |
