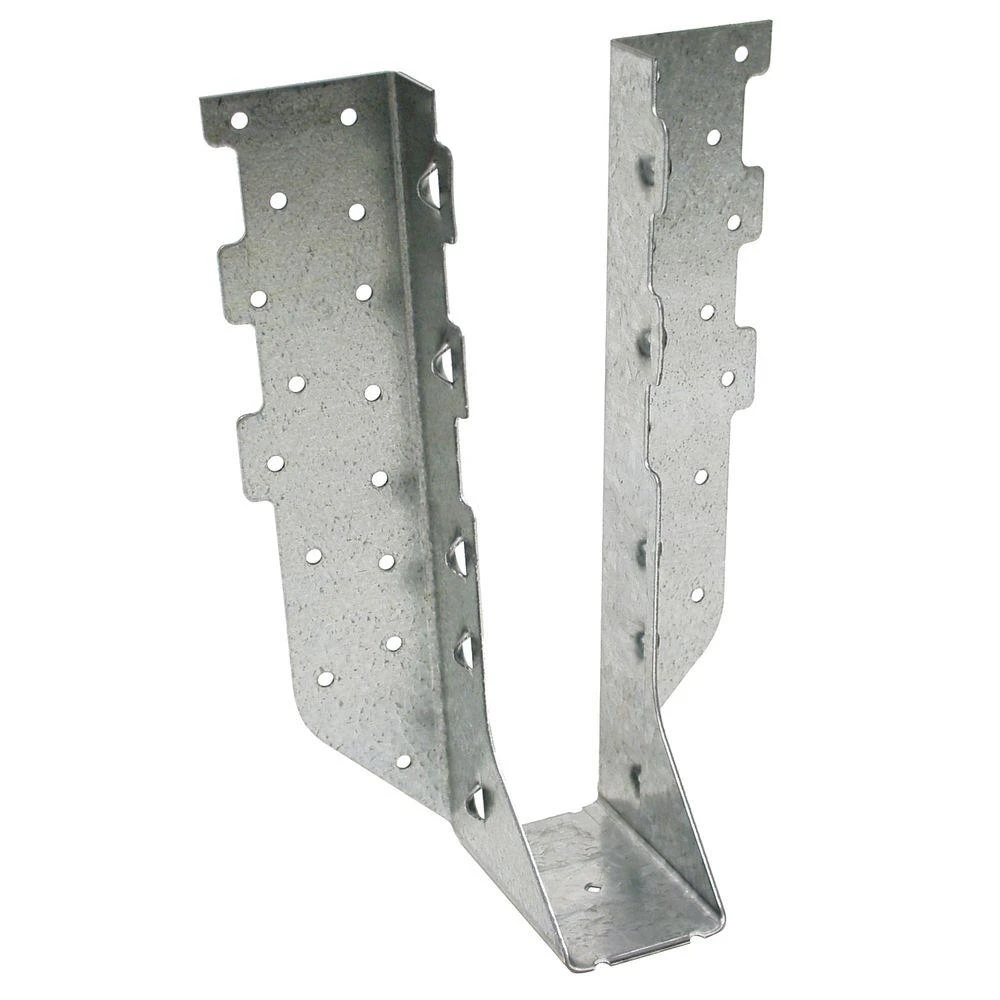

Face-Mount Joist Hanger, HUS, Galvanized, 1-3/4 x 9-1/2 In.

1-3/4" x 9-1/2" hus galvanized face-mount joist hanger for engineered wood Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. HUS hangers are designed for applications where higher load values are needed.

• Features double-shear nailing which distributes the load through two points on each joist nail for greater strength
• Do not bend or remove tabs
• Allows for the use of fewer nails, faster installation, and the use of standard nails for all connections
• Seat width: 1-13/16 in.
• Actual joist size: 1-3/4 in. x 11-1/4 in. to 11-7/8 in.
• Made from 16-gauge steel
• Galvanized (G90) for extra corrosion resistance
