Anderson Metals

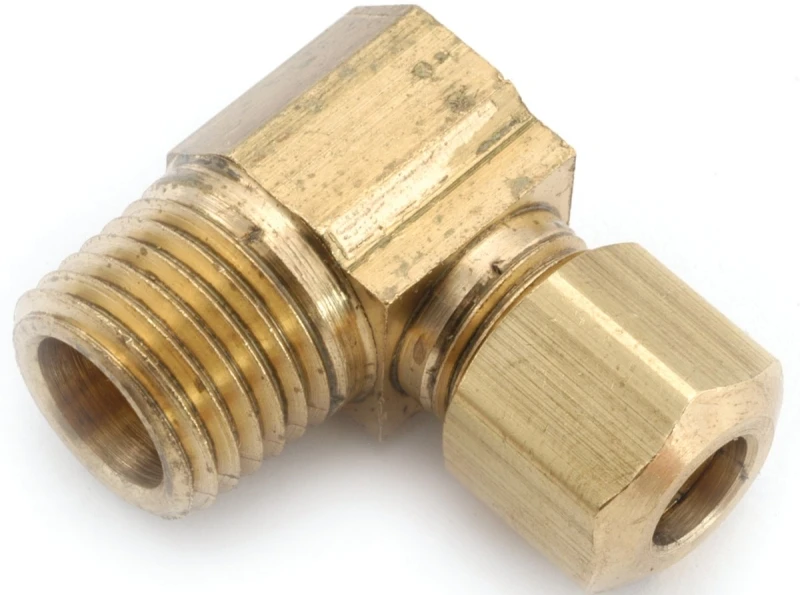

Anderson Metals 750069-0808 Tube Elbow, 1/2 in, Compression x MNPT, 90 deg Angle, Brass, 200 psi Pressure
SKU: 122940Model: 122940UPC: 719852938507
$10.99
Only 4 Left
Description
1/2" compression x 1/2" male pipe thread, brass, 90 degree elbow, lead free compliant product which meets public law 111-380.
- Compliant Product Which Meets California AB-1953
- Compliant Product Which Meets Vermont SB-152
- Three Piece Construction - Nut, Sleeve (Or Ferrule) And Body
- Use With Copper, Aluminum Or Plastic Tubing (Plastic requires 60P Sleeve And 61P Insert)
- Negavtive 65 Degreees to Plus 250 Degrees F. Temperature Range
- Standard Fittings Use Short Nuts. Long Nuts Are Available For Higher Vibrations Applications.
- To Buy Compressions Fittings with Long Nut, Please Add a "1" In Front Of The Part Number. (i.e. 68 = 168)
- Easy To Disassemble, No Flaring Tool Required
- Primary Uses: Water, Gasoline, Oil and Vacuum Lines
- To Assemble:
- 1. Cut Smooth, Square End On Tubbing
- 2. Slide Nut, Then Sleeve Onto Tube. Thread Must Face End.
- 3. Insert Tube Into Fitting
- 4. Thread Nut Onto Fitting Until Snug, then as follows: Up To 1/4 Inch = 1-1/4 Turns, 5/16 Inch = 1-3/4 Turns, 3/8 Inch and Up = 2-1/4 Turns
Specifications
| SKU | 122940 |
|---|---|
| UPC | 719852938507 |
| Weight | 0.2 lbs |
| Package Width | 1 in |
| Package Length | 1 in |
| Package Height | 1 in |
| Model Number | 122940 |
| Brand | Anderson Metals |
