Anderson Metals

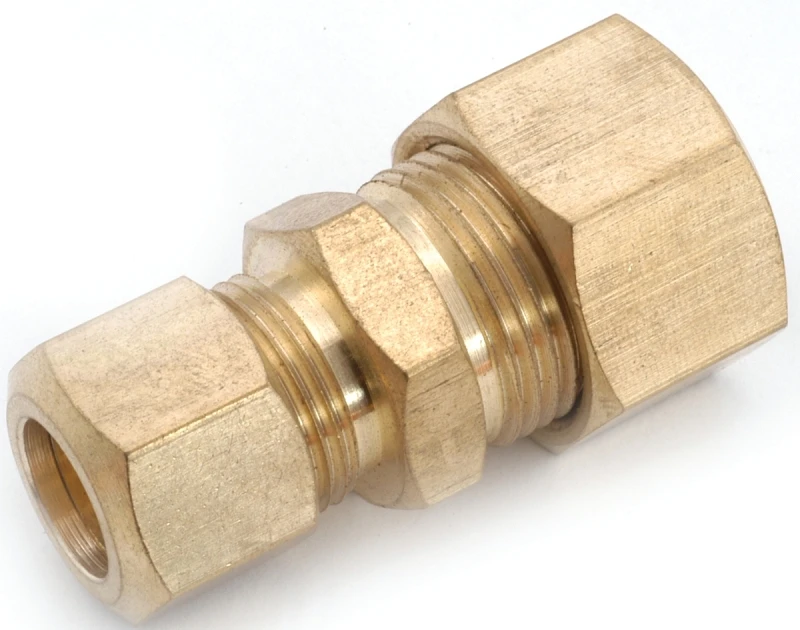

Pipe Fitting, Reducing Union, Lead Free, 5/8 OD x 1/2 In. OD
SKU: 122934Model: 122934UPC: 719852938545
$9.49
Only 1 Left
Description
5/8" od x 1/2" od, reducing union, lead free compliant product which meets public law 111-380.
- Compliant Product Which Meets California AB-1953
- Compliant Product Which Meets Vermont SB-152
- Three Piece Construction - Nut, Sleeve (Or Ferrule) And Body
- Use With Copper, Aluminum Or Plastic Tubing (Plastic requires 60P Sleeve And 61P Insert)
- Negavtive 65 Degreees to Plus 250 Degrees F. Temperature Range
- Standard Fittings Use Short Nuts. Long Nuts Are Available For Higher Vibrations Applications.
- To Buy Compressions Fittings with Long Nut, Please Add a "1" In Front Of The Part Number. (i.e. 68 = 168)
- Easy To Disassemble, No Flaring Tool Required
- Primary Uses: Water, Gasoline, Oil and Vacuum Lines
- To Assemble:
- 1. Cut Smooth, Square End On Tubbing
- 2. Slide Nut, Then Sleeve Onto Tube. Thread Must Face End.
- 3. Insert Tube Into Fitting
- 4. Thread Nut Onto Fitting Until Snug, then as follows: Up To 1/4 Inch = 1-1/4 Turns, 5/16 Inch = 1-3/4 Turns, 3/8 Inch and Up = 2-1/4 Turns
Specifications
| SKU | 122934 |
|---|---|
| UPC | 719852938545 |
| Weight | 0.26 lbs |
| Package Width | 1 in |
| Package Length | 1 in |
| Package Height | 1 in |
| Model Number | 122934 |
| Brand | Anderson Metals |
