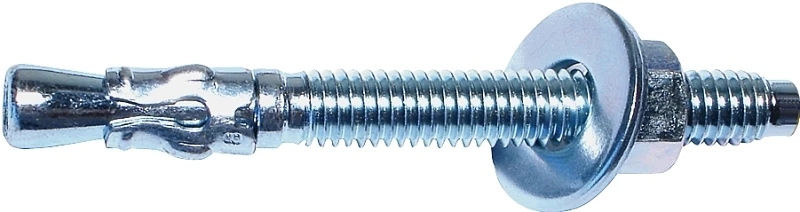

Zinc Plated Wedge Anchor 3/8" X 3-3/4" - Model 04125

Overview:
The Midwest Fastener Zinc Plated Wedge Anchor is designed for reliable anchoring in concrete applications. With a diameter of 3/8 inches and a length of 3-3/4 inches, this anchor provides exceptional strength and durability, making it ideal for various construction and renovation projects. The zinc plating offers corrosion resistance, ensuring longevity even in dry environments.

Key Features:
- Diameter: 3/8 inches
- Length: 3-3/4 inches
- Material: Carbon Steel with Zinc Plating
- Thread Type: 3/8" - 16
- Maximum Fixture Thickness: 1-7/8 inches
- Minimum Embedment: 1-1/2 inches
- Minimum Edge Distance: 1-7/8 inches
- Minimum Fixture Hole Diameter (In Place): 1/2 inches
- Minimum Fixture Hole Diameter (Hole Spotted): 3/8 inches
- Maximum Torque: 25 - 30 ft./lbs.
- Pull-Out Strength (2000 PSI Concrete): 1223 lbs.
- Shear Strength (2000 PSI Concrete): 3238 lbs.
- Environment: Dry
- Type: Male
- Length ID Code: E
- Box Quantity: 50

Use Cases:
This wedge anchor is perfect for securing fixtures to concrete surfaces, such as installing machinery, railings, or structural supports. Its robust design ensures that it can withstand significant loads, making it suitable for both residential and commercial applications. Whether you are a contractor or a DIY enthusiast, the Midwest Fastener Wedge Anchor is an essential component for your next project.
